Style scoping versus shadow DOM: which is fastest?

Last year, I asked the question: Does shadow DOM improve style performance? I didn’t give a clear answer, so perhaps it’s no surprise that some folks weren’t sure what conclusion to draw.

In this post, I’d like to present a new benchmark that hopefully provides a more solid answer.

TL;DR: My new benchmark largely confirmed my previous research, and shadow DOM comes out as the most consistently performant option. Class-based style scoping slightly beats shadow DOM in some scenarios, but in others it’s much less performant. Firefox, thanks to its multi-threaded style engine, is much faster than Chrome or Safari.

Shadow DOM and style performance

To recap: shadow DOM has some theoretical benefits to style calculation, because it allows the browser to work with a smaller DOM size and smaller CSS rule set. Rather than needing to compare every CSS rule against every DOM node on the page, the browser can work with smaller “sub-DOMs” when calculating style.

However, browsers have a lot of clever optimizations in this area, and userland “style scoping” solutions have emerged (e.g. Vue, Svelte, and CSS Modules) that effectively hook into these optimizations. The way they typically do this is by adding a class or an attribute to the CSS selector: e.g. * { color: red } becomes *.xxx { color: red }, where xxx is a randomly-generated token unique to each component.

After crunching the numbers, my post showed that class-based style scoping was actually the overall winner. But shadow DOM wasn’t far behind, and it was the more consistently fast option.

These nuances led to a somewhat mixed reaction. For instance, here’s one common response I saw (paraphrasing):

The fastest option overall is class-based scoped styles, ala Svelte or CSS Modules. So shadow DOM isn’t really that great.

But looking at the same data, you could reach another, totally reasonable, conclusion:

With shadow DOM, the performance stays constant instead of scaling with the size of the DOM or the complexity of the CSS. Shadow DOM allows you to use whatever CSS selectors you want and not worry about performance.

Part of it may have been people reading into the data what they wanted to believe. If you already dislike shadow DOM (or web components in general), then you can read my post and conclude, “Wow, shadow DOM is even more useless than I thought.” Or if you’re a web components fan, then you can read my post and think, “Neat, shadow DOM can improve performance too!” Data is in the eye of the beholder.

To drive this point home, here’s the same data from my post, but presented in a slightly different way:

Chart image, see table below for the same data

Click for details

This is 1,000 components, 10 rules per component.

Selector performance (ms) Chrome Firefox Safari
Class selectors 58.5 22 56
Attribute selectors 597.1 143 710
Class selectors – shadow DOM 70.6 30 61
Attribute selectors – shadow DOM 71.1 30 81

As you can see, the case you really want to avoid is the second one – bare attribute selectors. Inside of the shadow DOM, though, they’re fine. Class selectors do beat shadow DOM overall, but only by a rounding error.

My post also showed that more complex selectors are consistently fast inside of the shadow DOM, even if they’re much slower at the global level. This is exactly what you would expect, given how shadow DOM works – the real surprise is just that shadow DOM doesn’t handily win every category.

Re-benchmarking

It didn’t sit well with me that my post didn’t draw a firm conclusion one way or the other. So I decided to benchmark it again.

This time, I tried to write a benchmark to simulate a more representative web app. Rather than focusing on individual selectors (ID, class, attribute, etc.), I tried to compare a userland “scoped styles” implementation against shadow DOM.

My new benchmark generates a DOM tree based on the following inputs:

  • Number of “components” (web components are not used, since this benchmark is about shadow DOM exclusively)
  • Elements per component (with a random DOM structure, with some nesting)
  • CSS rules per component (randomly generated, with a mix of tag, class, attribute, :not(), and :nth-child() selectors, and some descendant and compound selectors)
  • Classes per component
  • Attributes per component

To find a good representative for “scoped styles,” I chose Vue 3’s implementation. My previous post showed that Vue’s implementation is not as fast as that of Svelte or CSS Modules, since it uses attributes instead of classes, but I found Vue’s code to be easier to integrate. To make things a bit fairer, I added the option to use classes rather than attributes.

One subtlety of Vue’s style scoping is that it does not scope ancestor selectors. For instance:

/* Input */
div div {}

/* Output - Vue */
div div[data-v-xxx] {}

/* Output - Svelte */
div.svelte-xxx div.svelte-xxx {}

(Here is a demo in Vue and a demo in Svelte.)

Technically, Svelte’s implementation is more optimal, not only because it uses classes rather than attributes, but because it can rely on the Bloom filter optimization for ancestor lookups (e.g. :not(div) div.svelte-xxx:not(div) div.svelte-xxx, with .svelte-xxx in the ancestor). However, I kept the Vue implementation because 1) this analysis is relevant to Vue users at least, and 2) I didn’t want to test every possible permutation of “scoped styles.” Adding the “class” optimization is enough for this blog post – perhaps the “ancestor” optimization can come in future work.

Note: In benchmark after benchmark, I’ve seen that class selectors are typically faster than attribute selectors – sometimes by a lot, sometimes by a little. From the web developer’s perspective, it may not be obvious why. Part of it is just browser vendor priorities: for instance, WebKit invented the Bloom filter optimization in 2011, but originally it only applied to tags, classes, and IDs. They expanded it to attributes in 2018, and Chrome and Firefox followed suit in 2021 when I filed these bugs on them. Perhaps something about attributes also makes them intrinsically harder to optimize than classes, but I’m not a browser developer, so I won’t speculate.

Methodology

I ran this benchmark on a 2021 MacBook Pro (M1), running macOS Monterey 12.4. The M1 is perhaps not ideal for this, since it’s a very fast computer, but I used it because it’s the device I had, and it can run all three of Chrome, Firefox, and Safari. This way, I can get comparable numbers on the same hardware.

In the test, I used the following parameters:

Parameter Value
Number of components 1000
Elements per component 10
CSS rules per component 10
Classes per element 2
Attributes per element 2

I chose these values to try to generate a reasonable “real-world” app, while also making the app large enough and interesting enough that we’d actually get some useful data out of the benchmark. My target is less of a “static blog” and more of a “heavyweight SPA.”

There are certainly more inputs I could have added to the benchmark: for instance, DOM depth. As configured, the benchmark generates a DOM with a maximum depth of 29 (measured using this snippet). Incidentally, this is a decent approximation of a real-world app – YouTube measures 28, Reddit 29, and Wikipedia 17. But you could certainly imagine more heavyweight sites with deeper DOM structures, which would tend to spend more time in descendant selectors (outside of shadow DOM, of course – descendant selectors cannot cross shadow boundaries).

For each measurement, I took the median of 5 runs. I didn’t bother to refresh the page between each run, because it didn’t seem to make a big difference. (The relevant DOM was being blown away every time.) I also didn’t randomize the stylesheets, because the browsers didn’t seem to be doing any caching that would require randomization. (Browsers have a cache for stylesheet parsing, as I discussed in this post, but not for style calculation, insofar as it matters for this benchmark anyway.)

Update: I realized this comment was a bit blasé, so I re-ran the benchmark with a fresh browser session between each sample, just to make sure the browser cache wasn’t affecting the numbers. You can find those numbers at the end of the post. (Spoiler: no big change.)

Although the benchmark has some randomness, I used random-seedable with a consistent seed to ensure reproducible results. (Not that the randomness was enough to really change the numbers much, but I’m a stickler for details.)

The benchmark uses a requestPostAnimationFrame polyfill to measure style/layout/paint performance (see this post for details). To focus on style performance only, a DOM structure with only absolute positioning is used, which minimizes the time spent in layout and paint.

And just to prove that the benchmark is actually measuring what I think it’s measuring, here’s a screenshot of the Chrome DevTools Performance tab:

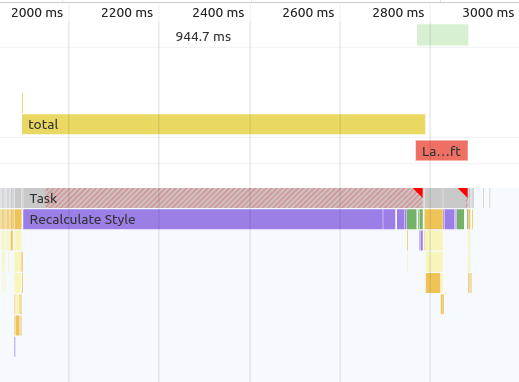

Screenshot of Chrome DevTools showing a large amount of time taken up by the User Timing called "total" with most of that containing a time slice called "Recalculate style"

Note that the measured time (“total”) is mostly taken up by “Recalculate Style.”

Results

When discussing the results, it’s much simpler to go browser-by-browser, because each one has different quirks.

One of the things I like about analyzing style performance is that I see massive differences between browsers. It’s one of those areas of browser performance that seems really unsettled, with lots of work left to do.

That is… unless you’re Firefox. I’m going to start off with Firefox, because it’s the biggest outlier out of the three major browser engines.

Firefox

Firefox’s Stylo engine is fast. Like, really fast. Like, so fast that, if every browser were like Firefox, there would be little point in discussing style performance, because it would be a bit like arguing over the fastest kind of for-loop in JavaScript. (I.e., interesting minutia, but irrelevant except for the most extreme cases.)

In almost every style calculation benchmark I’ve seen over the past five years, Firefox smokes every other browser engine to the point where it’s really in a class of its own. Whereas other browsers may take over 1,000ms in a given scenario, Firefox will take ~100ms for the same scenario on the same hardware.

So keep in mind that, with Firefox, we’re going to be talking about really small numbers. And the differences between them are going to be even smaller. But here they are:

Chart data, see details in table below

Click for table
Scenario Firefox 101
Scoping – classes 30
Scoping – attributes 38
Shadow DOM 26
Unscoped 114

Note that, in this benchmark, the first three bars are measuring roughly the same thing – you end up with the same DOM with the same styles. The fourth case is a bit different – all the styles are purely global, with no scoping via classes or attributes. It’s mostly there as a comparison point.

My takeaway from the Firefox data is that scoping with either classes, attributes, or shadow DOM is fine – they’re all pretty fast. And as I mentioned, Firefox is quite fast overall. As we move on to other browsers, you’ll see how the performance numbers get much more varied.

Chrome

The first thing you should notice about Chrome’s data is how much higher the y-axis is compared to Firefox. With Firefox, we were talking about ~100ms at the worst, whereas now with Chrome, we’re talking about an order of magnitude higher: ~1,000ms. (Don’t feel bad for Chrome – the Safari numbers will look pretty similar.)

Chart data, see details in table below

Click for table
Scenario Chrome 102
Scoping – classes 357
Scoping – attributes 614
Shadow DOM 49
Unscoped 1022

Initially, the Chrome data tells a pretty simple story: shadow DOM is clearly the fastest, followed by style scoping with classes, followed by style scoping with attributes, followed by unscoped CSS. So the message is simple: use Shadow DOM, but if not, then use classes instead of attributes for scoping.

I noticed something interesting with Chrome, though: the performance numbers are vastly different for these two cases:

  • 1,000 components: insert 1,000 different <style>s into the <head>
  • 1,000 components: concatenate those styles into one big <style>

As it turns out, this simple optimization greatly improves the Chrome numbers:

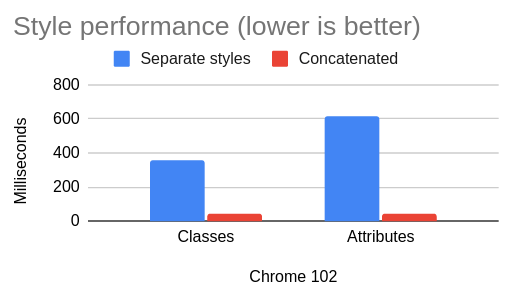

Chart data, see details in table below

Click for table
Scenario Chrome 102 – separate styles Chrome 102 – concatenated
Classes 357 48
Attributes 614 43

When I first saw these numbers, I was confused. I could understand this optimization in terms of reducing the cost of DOM insertions. But we’re talking about style calculation – not DOM API performance. In theory, it shouldn’t matter whether there are 1,000 stylesheets or one big stylesheet. And indeed, Firefox and Safari show no difference between the two:

Chart data, see details in table below

Click for table
Scenario Firefox 101 – separate styles Firefox 101 – concatenated
Classes 30 29
Attributes 38 38

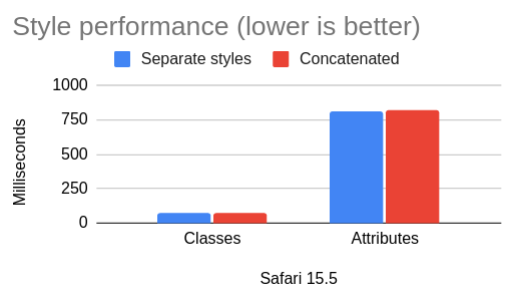

Chart data, see details in table below

Click for table
Scenario Safari 15.5 – separate styles Safari 15.5. – concatenated
Classes 75 73
Attributes 812 820

This behavior was curious enough that I filed a bug on Chromium. According to the Chromium engineer who responded (thank you!), this is because of a design decision to trade off some initial performance in favor of incremental performance when stylesheets are modified or added. (My benchmark is a bit unfair to Chrome, since it only measures the initial calculation. A good idea for a future benchmark!)

This is actually a pretty interesting data point for JavaScript framework and bundler authors. It seems that, for Chromium anyway, the ideal technique is to concatenate stylesheets similarly to how JavaScript bundlers do code-splitting – i.e. trying to concatenate as much as possible, while still splitting in some cases to optimize for caching across routes. (Or you could go full inline and just put one big <style> on every page.) Keep in mind, though, that this is a peculiarity of Chromium’s current implementation, and it could go away at any moment if Chromium decides to change it.

In terms of the benchmark, though, it’s not clear to me what to do with this data. You might imagine that it’s a simple optimization for a JavaScript framework (or meta-framework) to just concatenate all the styles together, but it’s not always so straightforward. When a component is mounted, it may call getComputedStyle() on its own DOM nodes, so batching up all the style insertions until after a microtask is not really feasible. Some meta-frameworks (such as Nuxt and SvelteKit) leverage a bundler to concatenate the styles and insert them before the component is mounted, but it feels a bit unfair to depend on that for the benchmark.

To me, this is one of the core advantages of shadow DOM – you don’t have to worry if your bundler is configured correctly or if your JavaScript framework uses the right kind of style scoping. Shadow DOM is just performant, all of the time, full stop. That said, here is the Chrome comparison data with the concatenation optimization applied:

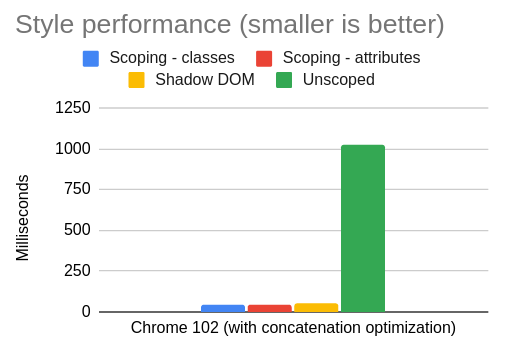

Chart data, see details in table below

Click for table
Scenario Chrome 102 (with concatenation optimization)
Scoping – classes 48
Scoping – attributes 43
Shadow DOM 49
Unscoped 1022

The first three are close enough that I think it’s fair to say that all of the three scoping methods (class, attribute, and shadow DOM) are fast enough.

Note: You may wonder if Constructable Stylesheets would have an impact here. I tried a modified version of the benchmark that uses these, and didn’t observe any difference – Chrome showed the same behavior for concatenation vs splitting. This makes sense, as none of the styles are duplicated, which is the main use case Constructable Stylesheets are designed for. I have found elsewhere, though, that Constructable Stylesheets are more performant than <style> tags in terms of DOM API performance, if not style calculation performance (e.g. see here, here, and here).

Safari

In our final tour of browsers, we arrive at Safari:

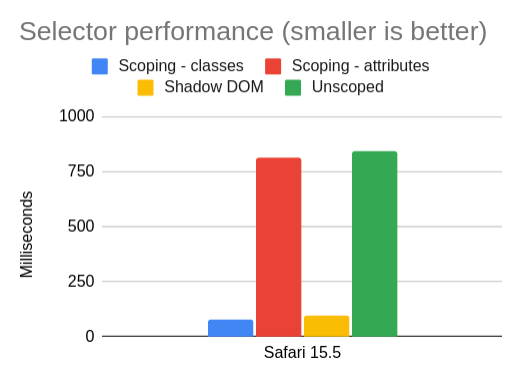

Chart data, see details in table below

Click for table
Scenario Safari 15.5
Scoping – classes 75
Scoping – attributes 812
Shadow DOM 94
Unscoped 840

To me, the Safari data is the easiest to reason about. Class scoping is fast, shadow DOM is fast, and unscoped CSS is slow. The one surprise is just how slow attribute selectors are compared to class selectors. Maybe WebKit has some more optimizations to do in this space – compared to Chrome and Firefox, attributes are just a much bigger performance cliff relative to classes.

This is another good example of why class scoping is superior to attribute scoping. It’s faster in all the engines, but the difference is especially stark in Safari. (Or you could use shadow DOM and not worry about it at all.)

Update: shortly after this post was published, WebKit made an optimization to attribute selectors. This seems to eliminate the perf cliff: in Safari Technology Preview 152 (Safari 16.0, WebKit 17615.1.2.3), the benchmark time for attributes drops to 77ms, which is only marginally slower than classes at 74ms (taking the median of 15 samples).

Conclusion

Performance shouldn’t be the main reason you choose a technology like scoped styles or shadow DOM. You should choose it because it fits well with your development paradigm, it works with your framework of choice, etc. Style performance usually isn’t the biggest bottleneck in a web application, although if you have a lot of CSS or a large DOM size, then you may be surprised by the amount of “Recalculate Style” costs in your next performance trace.

One can also hope that someday browsers will advance enough that style calculation becomes less of a concern. As I mentioned before, Stylo exists, it’s very good, and other browsers are free to borrow its ideas for their own engines. If every browser were as fast as Firefox, I wouldn’t have a lot of material for this blog post.

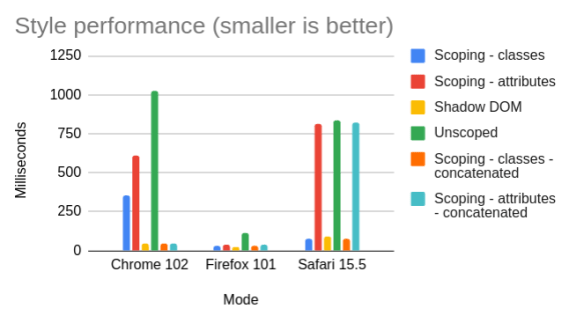

Chart data, see details in table below

This is the same data presented in this post, but on a single chart. Just notice how much Firefox stands out from the other browsers.

Click for table
Scenario Chrome 102 Firefox 101 Safari 15.5
Scoping – classes 357 30 75
Scoping – attributes 614 38 812
Shadow DOM 49 26 94
Unscoped 1022 114 840
Scoping – classes – concatenated 48 29 73
Scoping – attributes – concatenated 43 38 820

For those who dislike shadow DOM, there is also a burgeoning proposal in the CSS Working Group for style scoping. If this proposal were adopted, it could provide a less intrusive browser-native scoping mechanism than shadow DOM, similar to the abandoned <style scoped> proposal. I’m not a browser developer, but based on my reading of the spec, I don’t see why it couldn’t offer the same performance benefits we see with shadow DOM.

In any case, I hope this blog post was interesting, and helped shine light on an odd and somewhat under-explored space in web performance. Here is the benchmark source code and a live demo in case you’d like to poke around.

Thanks to Alex Russell and Thomas Steiner for feedback on a draft of this blog post.

Afterword – more data

Updated June 23, 2022

After writing this post, I realized I should take my own advice and automate the benchmark so that I could have more confidence in the numbers (and make it easier for others to reproduce).

So, using Tachometer, I re-ran the benchmark, taking the median of 25 samples, where each sample uses a fresh browser session. Here are the results:

Chart data, see details in table below

Click for table
Scenario Chrome 102 Firefox 101 Safari 15.5
Scoping – classes 277.1 45 80
Scoping – attributes 418.8 54 802
Shadow DOM 56.80000001 67 82
Unscoped 820.4 190 857
Scoping – classes – concatenated 44.30000001 42 80
Scoping – attributes – concatenated 44.5 51 802
Unscoped – concatenated 251.3 167 865

As you can see, the overall conclusion of my blog post doesn’t change, although the numbers have shifted slightly in absolute terms.

I also added “Unscoped – concatenated” as a category, because I realized that the “Unscoped” scenario would benefit from the concatenation optimization as well (in Chrome, at least). It’s interesting to see how much of the perf win is coming from concatenation, and how much is coming from scoping.

If you’d like to see the raw numbers from this benchmark, you can download them here.

Second afterword – even more data

Updated June 25, 2022

You may wonder how much Firefox’s Stylo engine is benefiting from the 10 cores in that 2021 Mac Book Pro. So I unearthed my old 2014 Mac Mini, which has only 2 cores but (surprisingly) can still run macOS Monterey. Here are the results:

Chart data, see details in table below

Click for table
Scenario Chrome 102 Firefox 101 Safari 15.5
Scoping – classes 717.4 107 187
Scoping – attributes 1069.5 162 2853
Shadow DOM 227.7 117 233
Unscoped 2674.5 452 3132
Scoping – classes – concatenated 189.3 104 188
Scoping – attributes – concatenated 191.9 159 2826
Unscoped – concatenated 865.8 422 3148

(Again, this is the median of 25 samples. Raw data.)

Amazingly, Firefox seems to be doing even better here relative to the other browsers. For “Unscoped,” it’s 14.4% of the Safari number (vs 22.2% on the MacBook), and 16.9% of the Chrome number (vs 23.2% on the MacBook). Whatever Stylo is doing, it’s certainly impressive.

Dialogs and shadow DOM: can we make it accessible?

Last year, I wrote about managing focus in the shadow DOM, and in particular about modal dialogs. Since the <dialog> element has now shipped in all browsers, and the inert attribute is starting to land too, I figured it would be a good time to take another look at getting dialogs to play nicely with shadow DOM.

This post is going to get pretty technical, especially when it comes to the nitty-gritty details of accessibility and web standards. If you’re into that, then buckle up! The ride may be a bit bumpy.

Quick recap

Shadow DOM is weird. On paper, it doesn’t actually change what you can do in the DOM – with open mode, at least, you can access any element on the page that you want. In practice, though, shadow DOM upends a lot of web developer expectations about how the DOM works, and makes things much harder.

Image of Lisa Simpson in front of a sign saying "Keep out. Or enter, I'm a sign not a cop."

I credit Brian Kardell for this description of open shadow DOM, which is maybe the most perfect distillation of how it actually works.

Note: Shadow DOM has two modes: open and closed. Closed mode is a lot more restrictive, but it’s less common – the majority of web component frameworks use open by default (e.g. Angular, Fast, Lit, LWC, Remount, Stencil, Svelte, Vue). Somewhat surprisingly, though, open mode is only 3 times as popular as closed mode, according to Chrome Platform Status (9.9% vs 3.5%).

For accessibility reasons, modal dialogs need to implement a focus trap. However, the DOM doesn’t have an API for “give me all the elements on the page that the user can Tab through.” So web developers came up with creative solutions, most of which amount to:

dialog.querySelectorAll('button, input, a[href], ...')

Unfortunately this is the exact thing that doesn’t work in the shadow DOM. querySelectorAll only grabs elements in the current document or shadow root; it doesn’t deeply traverse.

Like a lot of things with shadow DOM, there is a workaround, but it requires some gymnastics. These gymnastics are hard, and have a complexity and (probably) performance cost. So a lot of off-the-shelf modal dialogs don’t handle shadow DOM properly (e.g. a11y-dialog does not).

Note: My goal here isn’t to criticize a11y-dialog. I think it’s one of the best dialog implementations out there. So if even a11y-dialog doesn’t support shadow DOM, you can imagine a lot of other dialog implementations probably don’t, either.

A constructive dialog

“But what about <dialog>?”, you might ask. “The dang thing is called <dialog>; can’t we just use that?”

If you had asked me a few years ago, I would have pointed you to Scott O’Hara’s extensive blog post on the subject, and said that <dialog> had too many accessibility gotchas to be a practical solution.

If you asked me today, I would again point you to the same blog post. But this time, there is a very helpful 2022 update, where Scott basically says that <dialog> has come a long way, so maybe it’s time to give it a second chance. (For instance, the issue with returning focus to the previously-focused element is now fixed, and the need for a polyfill is much reduced.)

Note: One potential issue with <dialog>, mentioned in Rob Levin’s recent post on the topic, is that clicking outside of the dialog should close it. This has been proposed for the <dialog> element, but the WAI ARIA Authoring Practices Guide doesn’t actually stipulate this, so it seems like optional behavior to me.

To be clear: <dialog> still doesn’t give you 100% of what you’d need to implement a dialog (e.g. you’d need to lock the background scroll), and there are still some lingering discussions about how to handle initial focus. For that reason, Scott still recommends just using a battle-tested library like a11y-dialog.

As always, though, shadow DOM makes things more complicated. And in this case, <dialog> actually has some compelling superpowers:

  1. It automatically limits focus to the dialog, with correct Tab order, even in shadow DOM.
  2. It works with closed shadow roots as well, which is impossible in userland solutions.
  3. It also works with user-agent shadow roots. (E.g. you can Tab through the buttons in a <video controls> or <audio controls>.) This is also impossible in userland, since these elements function effectively like closed shadow roots.
  4. It correctly returns focus to the previously-focused element, even if that element is in a closed shadow root. (This is possible in userland, but you’d need an API contract with the closed-shadow component.)
  5. The Esc key correctly closes the modal, even if the focus is in a user-agent shadow root (e.g. the pause button is focused when you press Esc). This is also not possible in userland.

Here is a demo:

Note: Eagle-eyed readers may wonder: what if the first tabbable element in the dialog is in a shadow root? Does it correctly get focus? The short answer is: yes in Chrome, no in Firefox or Safari (demo). Let’s hope those browsers fix it soon.

So should everybody just switch over to <dialog>? Not so fast: it actually doesn’t perfectly handle focus, per the WAI ARIA Authoring Practices Guide (APG), because it allows focus to escape to the browser chrome. Here’s what I mean:

  • You reach the last tabbable element in the dialog and press Tab.
    • Correct: focus moves to the first tabbable element in the dialog.
    • Incorrect (<dialog>): focus goes to the URL bar or somewhere else in the browser chrome.
  • You reach the first tabbable element in the dialog and press Shift+Tab.
    • Correct: focus moves to the last tabbable element in the dialog.
    • Incorrect (<dialog>): focus goes to the URL bar or somewhere else in the browser chrome.

This may seem like a really subtle difference, but the consensus of accessibility experts seems to be that the WAI ARIA APG is correct, and <dialog> is wrong.

Note: I say “consensus,” but… there isn’t perfect consensus. You can read this comment from James Teh or Scott O’Hara’s aforementioned post (“This is good behavior, not a bug”) for dissenting opinions. In any case, the “leaky” focus trap conflicts with the WAI ARIA APG and the way userland dialogs have traditionally worked.

So we’ve reached (yet another!) tough decision with <dialog>. Do we accept <dialog>, because at least it gets shadow DOM right, even though it gets some other stuff wrong? Do we try to build our own thing? Do we quit web development entirely and go live the bucolic life of a potato farmer?

Inert matter

While I was puzzling over this recently, it occurred to me that inert may be a step forward to solving this problem. For those unfamiliar, inert is an attribute that can be used to mark sections of the DOM as “inert,” i.e. untabbable and invisible to screen readers:

<main inert></main>
<div role="dialog"></div>
<footer inert></footer>

In this way, you could mark everything except the dialog as inert, and focus would be trapped inside the dialog.

Here is a demo:

As it turns out, this works perfectly for tabbing through elements in the shadow DOM, just like <dialog>! Unfortunately, it has exactly the same problem with focus escaping to the browser chrome. This is no accident: the behavior of <dialog> is defined in terms of inert.

Can we still solve this, though? Unfortunately, I’m not sure it’s possible. I tried a few different techniques, such as listening for Tab events and checking if the activeElement has moved outside of the modal, but the problem is that you still, at some point, need to figure out what the “first” and “last” tabbable elements in the dialog are. To do this, you need to traverse the DOM, which means (at the very least) traversing open shadow roots, which doesn’t work for closed or user-agent shadow roots. And furthermore, it involves a lot of extra work for the web developer, who has probably lost focus at this point and is daydreaming about that nice, quiet potato farm.

Note: inert also, sadly, does not help with the Esc key in user-agent shadow roots, or returning focus to closed shadow roots when the dialog is closed, or setting initial focus on an element in a closed shadow root. These are <dialog>-only superpowers. Not that you needed any extra convincing.

Conclusion

Until the spec and browser issues have been ironed out (e.g. browsers change their behavior so that focus doesn’t escape to the browser chrome, or they give us some entirely different “focus trap” primitive), I can see two reasonable options:

  1. Use something like a11y-dialog, and don’t use shadow DOM or user-agent shadow components like <video controls> or <audio controls>. (Or do some nasty hacks to make it partially work.)
  2. Use shadow DOM, but don’t bother solving the “focus escapes to the browser chrome” problem. Use <dialog> (or a library built on top of it) and leave it at that.

For my readers who were hoping that I’d drop some triumphant “just npm install nolans-cool-dialog and it will work,” I’m sorry to disappoint you. Browsers are still rough around the edges in this area, and there aren’t a lot of great options. Maybe there is some mad-science way to actually solve this, but even that would likely involve a lot of complexity, so it wouldn’t be ideal.

Alternatively, maybe some of you are thinking that I’m focusing too much on closed and user-agent shadow roots. As long as you’re only using open shadow DOM (which, recall, is like the sign that says “I’m a sign, not a cop”), you can do whatever you want. So there’s no problem, right?

Personally, though, I like using <video controls> and <audio controls> (why ship a bunch of JavaScript to do something the browser already does?). And furthermore, I find it odd that if you put a <video controls> inside a <dialog>, you end up with something that’s impossible to make accessible per the WAI ARIA APG. (Is it too much to ask for a little internal consistency in the web platform?)

In any case, I hope this blog post was helpful for others tinkering around with the same problems. I’ll keep an eye on the browsers and standards space, and update this post if anything promising emerges.

Does shadow DOM improve style performance?

Update: I wrote a follow-up post on this topic.

Short answer: Kinda. It depends. And it might not be enough to make a big difference in the average web app. But it’s worth understanding why.

First off, let’s review the browser’s rendering pipeline, and why we might even speculate that shadow DOM could improve its performance. Two fundamental parts of the rendering process are style calculation and layout calculation, or simply “style” and “layout.” The first part is about figuring out which DOM nodes have which styles (based on CSS), and the second part is about figuring out where to actually place those DOM nodes on the page (using the styles calculated in the previous step).

Screenshot of Chrome DevTools showing a performance trace with JavaScript stacks followed by a purple Style/Layout region and green Paint region

A performance trace in Chrome DevTools, showing the basic JavaScript → Style → Layout → Paint pipeline.

Browsers are complex, but in general, the more DOM nodes and CSS rules on a page, the longer it will take to run the style and layout steps. One of the ways we can improve the performance of this process is to break up the work into smaller chunks, i.e. encapsulation.

For layout encapsulation, we have CSS containment. This has already been covered in other articles, so I won’t rehash it here. Suffice it to say, I think there’s sufficient evidence that CSS containment can improve performance (I’ve seen it myself), so if you haven’t tried putting contain: content on parts of your UI to see if it improves layout performance, you definitely should!

For style encapsulation, we have something entirely different: shadow DOM. Just like how CSS containment can improve layout performance, shadow DOM should (in theory) be able to improve style performance. Let’s consider why.

What is style calculation?

As mentioned before, style calculation is different from layout calculation. Layout calculation is about the geometry of the page, whereas style calculation is more explicitly about CSS. Basically, it’s the process of taking a rule like:

div > button {
  color: blue;
}

And a DOM tree like:

<div>
  <button></button>
</div>

…and figuring out that the <button> should have color: blue because its parent is a <div>. Roughly speaking, it’s the process of evaluating CSS selectors (div > button in this case).

Now, in the worst case, this is an O(n * m) operation, where n is the number of DOM nodes and m is the number of CSS rules. (I.e. for each DOM node, and for each rule, figure out if they match each other.) Clearly, this isn’t how browsers do it, or else any decently-sized web app would become grindingly slow. Browsers have a lot of optimizations in this area, which is part of the reason that the common advice is not to worry too much about CSS selector performance (see this article for a good, recent treatment of the subject).

That said, if you’ve worked on a non-trivial codebase with a fair amount of CSS, you may notice that, in Chrome performance profiles, the style costs are not zero. Depending on how big or complex your CSS is, you may find that you’re actually spending more time in style calculation than in layout calculation. So it isn’t a completely worthless endeavor to look into style performance.

Shadow DOM and style calculation

Why would shadow DOM improve style performance? Again, it’s because of encapsulation. If you have a CSS file with 1,000 rules, and a DOM tree with 1,000 nodes, the browser doesn’t know in advance which rules apply to which nodes. Even if you authored your CSS with something like CSS Modules, Vue scoped CSS, or Svelte scoped CSS, ultimately you end up with a stylesheet that is only implicitly coupled to the DOM, so the browser has to figure out the relationship at runtime (e.g. using class or attribute selectors).

Shadow DOM is different. With shadow DOM, the browser doesn’t have to guess which rules are scoped to which nodes – it’s right there in the DOM:

<my-component>
  #shadow-root
    <style>div {color: green}</style>
    <div></div>
<my-component>
<another-component>
  #shadow-root
    <style>div {color: blue}</style>
    <div></div>
</another-component>

In this case, the browser doesn’t need to test the div {color: green} rule against every node in the DOM – it knows that it’s scoped to <my-component>. Ditto for the div {color: blue} rule in <another-component>. In theory, this can speed up the style calculation process, because the browser can rely on explicit scoping through shadow DOM rather than implicit scoping through classes or attributes.

Benchmarking it

That’s the theory, but of course things are always more complicated in practice. So I put together a benchmark to measure the style calculation performance of shadow DOM. Certain CSS selectors tend to be faster than others, so for decent coverage, I tested the following selectors:

  • ID (#foo)
  • class (.foo)
  • attribute ([foo])
  • attribute value ([foo="bar"])
  • “silly” ([foo="bar"]:nth-of-type(1n):last-child:not(:nth-of-type(2n)):not(:empty))

Roughly, I would expect IDs and classes to be the fastest, followed by attributes and attribute values, followed by the “silly” selector (thrown in to add something to really make the style engine work).

To measure, I used a simple requestPostAnimationFrame polyfill, which measures the time spent in style, layout, and paint. Here is a screenshot in the Chrome DevTools of what’s being measured (note the “total” under the Timings section):

Screenshot of Chrome DevTools showing a "total" measurement in Timings which corresponds to style, layout, and other purple "rendering" blocks in the "Main" section

To run the actual benchmark, I used Tachometer, which is a nice tool for browser microbenchmarks. In this case, I just took the median of 51 iterations.

The benchmark creates several custom elements, and either attaches a shadow root with its own <style> (shadow DOM “on”) , or uses a global <style> with implicit scoping (shadow DOM “off”). In this way, I wanted to make a fair comparison between shadow DOM itself and shadow DOM “polyfills” – i.e. systems for scoping CSS that don’t rely on shadow DOM.

Each CSS rule looks something like this:

#foo {
  color: #000000;
}

And the DOM structure for each component looks like this:

<div id="foo">hello</div>

(Of course, for attribute and class selectors, the DOM node would have an attribute or class instead.)

Benchmark results

Here are the results in Chrome for 1,000 components and 1 CSS rule for each component:

Chart of Chrome with 1000 components and 1 rule. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 67.90 67.20 67.30 67.70 69.90
No Shadow DOM 57.50 56.20 120.40 117.10 130.50

As you can see, classes and IDs are about the same with shadow DOM on or off (in fact, it’s a bit faster without shadow DOM). But once the selectors get more interesting (attribute, attribute value, and the “silly” selector), shadow DOM stays roughly constant, whereas the non-shadow DOM version gets more expensive.

We can see this effect even more clearly if we bump it up to 10 CSS rules per component:

Chart of Chrome with 1000 components and 10 rules. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 70.80 70.60 71.10 72.70 81.50
No Shadow DOM 58.20 58.50 597.10 608.20 740.30

The results above are for Chrome, but we see similar numbers in Firefox and Safari. Here’s Firefox with 1,000 components and 1 rule each:

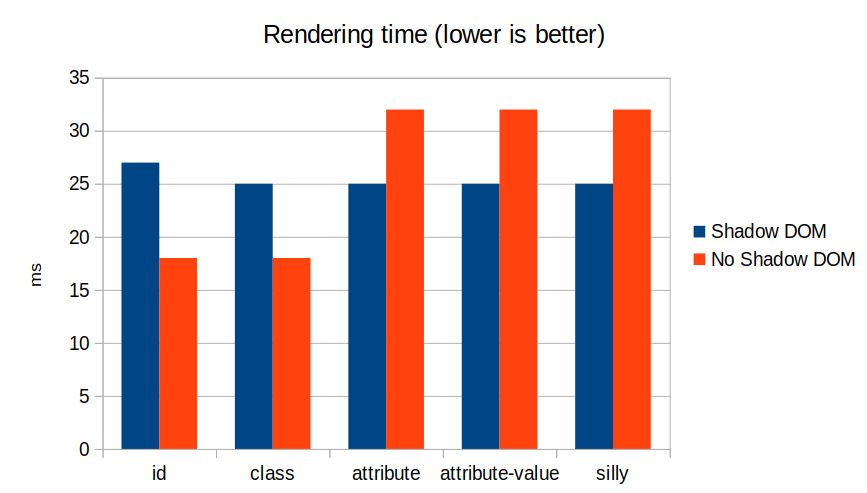

Chart of Firefox with 1000 components and 1 rule. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 27 25 25 25 25
No Shadow DOM 18 18 32 32 32

And Firefox with 1,000 components, 10 rules each:

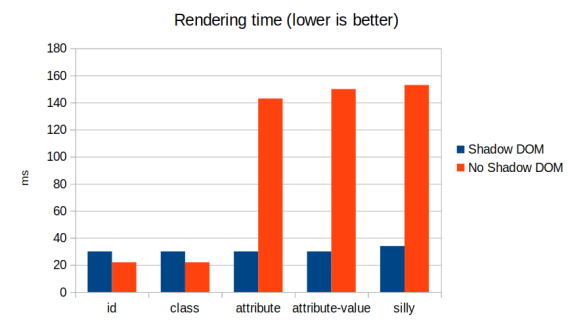

Chart of Firefox with 1000 components and 10 rules. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 30 30 30 30 34
No Shadow DOM 22 22 143 150 153

And here’s Safari with 1,000 components and 1 rule each:

Chart of Safari with 1000 components and 1 rule. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 57 58 61 63 64
No Shadow DOM 52 52 126 126 177

And Safari with 1,000 components, 10 rules each:

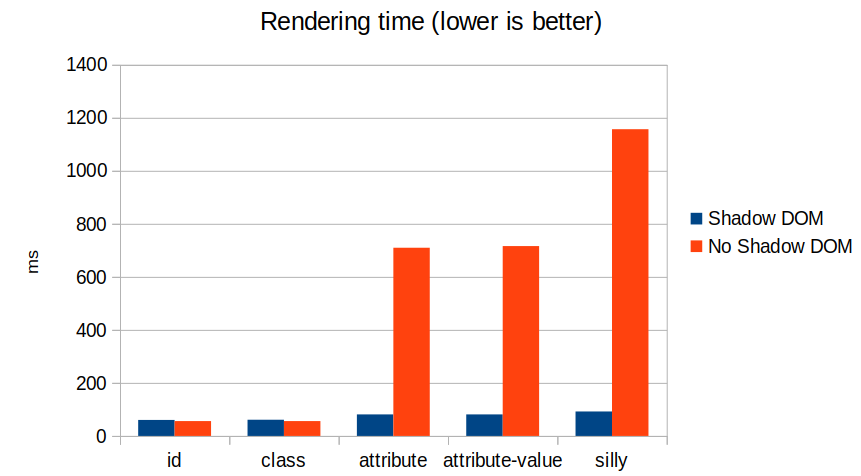

Chart of Safari with 1000 components and 10 rules. See tables for full data

Click for table
id class attribute attribute-value silly
Shadow DOM 60 61 81 81 92
No Shadow DOM 56 56 710 716 1157

All benchmarks were run on a 2015 MacBook Pro with the latest version of each browser (Chrome 92, Firefox 91, Safari 14.1).

Conclusions and future work

We can draw a few conclusions from this data. First off, it’s true that shadow DOM can improve style performance, so our theory about style encapsulation holds up. However, ID and class selectors are fast enough that actually it doesn’t matter much whether shadow DOM is used or not – in fact, they’re slightly faster without shadow DOM. This indicates that systems like Svelte, CSS Modules, or good old-fashioned BEM are using the best approach performance-wise.

This also indicates that using attributes for style encapsulation does not scale well compared to classes. So perhaps scoping systems like Vue would be better off switching to classes.

Another interesting question is why, in all three browser engines, classes and IDs are slightly slower when using shadow DOM. This is probably a better question for the browser vendors themselves, and I won’t speculate. I will say, though, that the differences are small enough in absolute terms that I don’t think it’s worth it to favor one or the other. The clearest signal from the data is just that shadow DOM helps to keep the style costs roughly constant, whereas without shadow DOM, you would want to stick to simple selectors like classes and IDs to avoid hitting a performance cliff.

As for future work: this is a pretty simple benchmark, and there are lots of ways to expand it. For instance, the benchmark only has one inner DOM node per component, and it only tests flat selectors – no descendant or sibling selectors (e.g. div div, div > div, div ~ div, and div + div). In theory, these scenarios should also favor shadow DOM, especially since these selectors can’t cross shadow boundaries, so the browser doesn’t need to look outside of the shadow root to find the relevant ancestors or siblings. (Although the browser’s Bloom filter makes this more complicated – see these notes for an good explanation of how this optimization works.)

Overall, though, I’d say that the numbers above are not big enough that the average web developer should start worrying about optimizing their CSS selectors, or migrating their entire web app to shadow DOM. These benchmark results are probably only relevant if 1) you’re building a framework, so any pattern you choose is magnified multiple times, or 2) you’ve profiled your web app and are seeing lots of high style calculation costs. But for everyone else, I hope at least that these results are interesting, and reveal a bit about how shadow DOM works.

Update: Thomas Steiner wondered about tag selectors as well (e.g. div {}), so I modified the benchmark to test it out. I’ll only report the results for the Shadow DOM version, since the benchmark uses divs, and in the non-shadow case it wouldn’t be possible to use tags alone to distinguish between different divs. In absolute terms, the numbers look pretty close to those for IDs and classes (or even a bit faster in Chrome and Firefox):

Click for table
Chrome Firefox Safari
1,000 components, 1 rule 53.9 19 56
1,000 components, 10 rules 62.5 20 58
